NOTE: Internal wire colors DO NOT MATCH FACTORY Joystick OEM cable colors

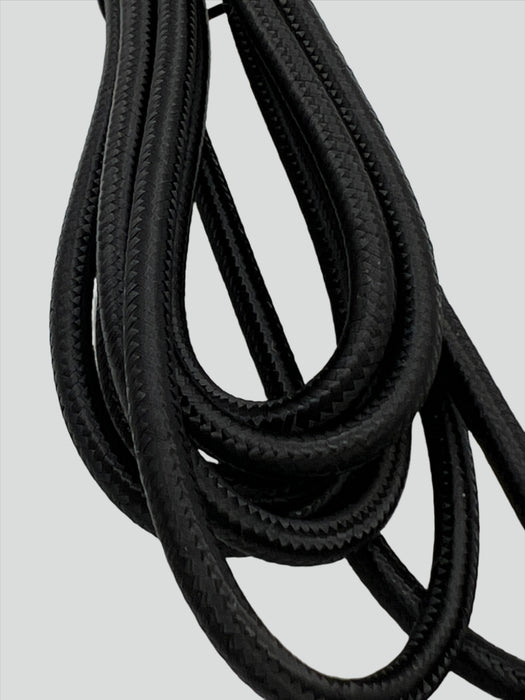

Brand new BLACK STRING BRAIDED high quality custom NES-004 Nintendo Control Pad and compatible clone controller repair cables. (Not for Zapper)
- Length: approx 8 feet 3 inches
- Number of wires: 5
- Colors available Black
Note: You should always use a voltmeter to test the continuity of the pins of the existing wires in the device / cable to match with the wires on the repair cable.

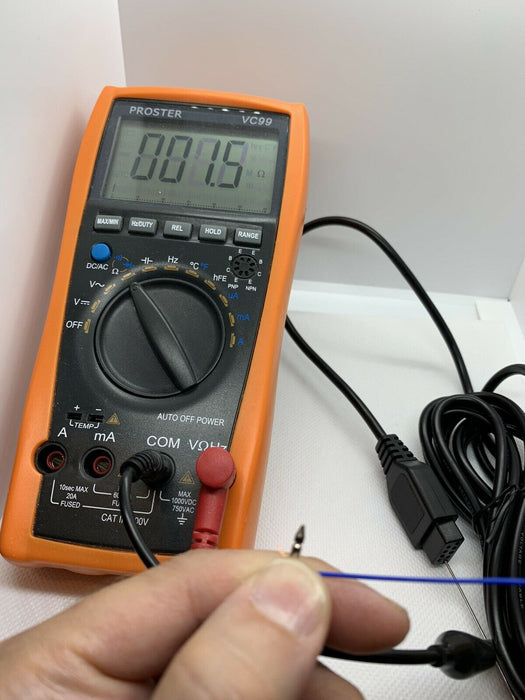

See pic for wire / pin pairing - (voltmeter not included - used to show how to test continuity) (console not included - used to show how it plugs in)

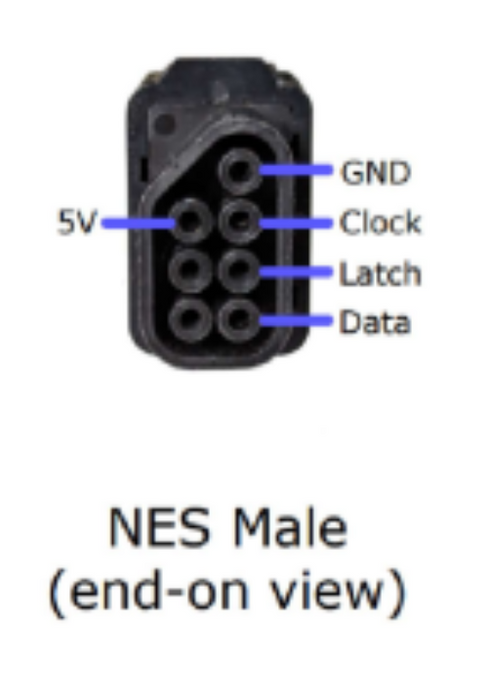

Internal Wire Color and Pin Mapping:
- GND - Black
- Clock - Red
- Latch - Yellow
- Data - Green
- 5v - White
