Colecovision Control Pad OS3D - RGB Edition with Silicone Contacts and Thumbstick

This is a Pre-Order.
Please refer to the order queue and wait time disclosure for more information.

Open Source Project Attribution:

This control pad was inspired by the open source project started by Sparkletron.

You can visit the GitHub Repository here and download the ORIGINAL 3D model and ORIGINAL circuit board files.

My latest contributions are here (please check back if no files are there yet)

• Model: (.stl) Top Case Cover
  • More ergonomic button hole swap 1 and 2
  • Slightly smaller fire button holes to reduce button wiggle
• Model: (.stl) Bottom Case Cover - no change
• Model: (.stl) New D-pad with center ball
  • Improved movement
  • Eliminates pressing all 4 directionals at once
• Model: (.stl) New slightly larger fire button

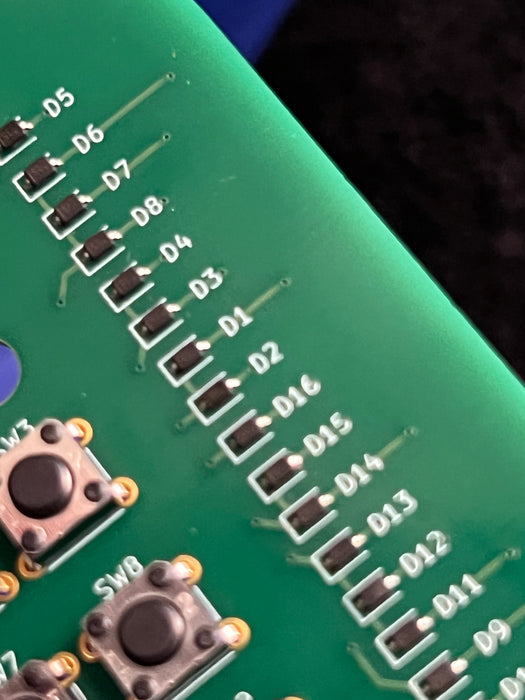

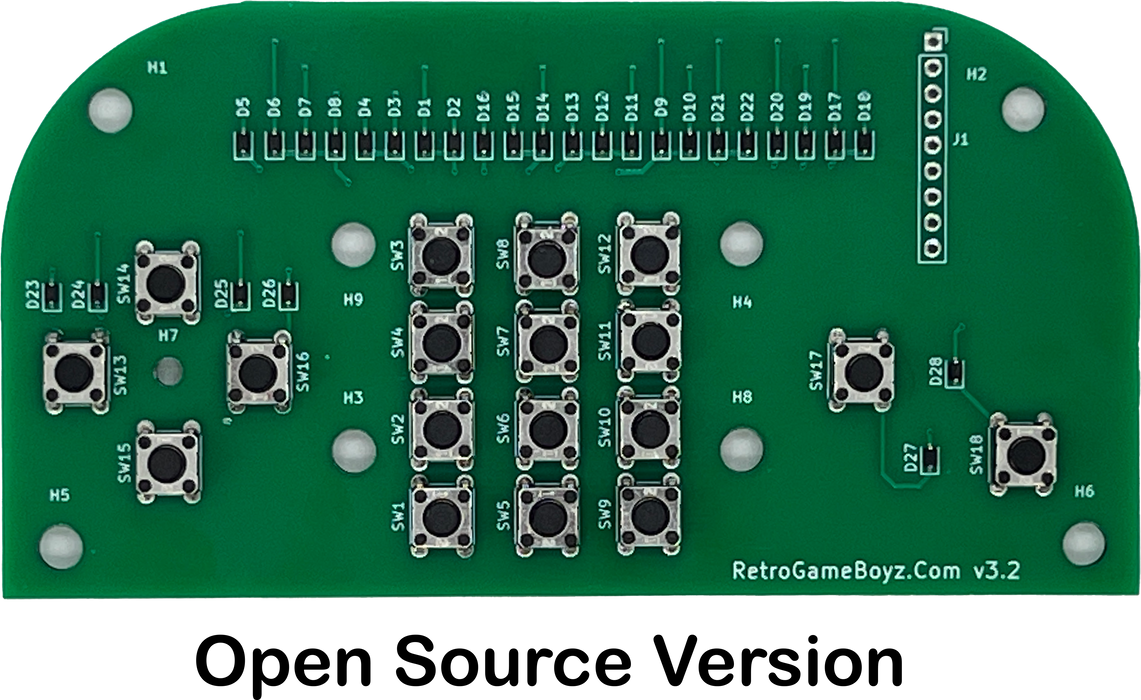

• PCB (.zip) - surface mounted diodes - (instead of through holes)
• BOM (.csv) - bill of materials for diodes and microswitches
• Pick and Place file (.csv) - locations for components
• You can submit this to be assembled by the PCB manufacturer

Please note: These resources are intended for users with experience in 3D printing and PCB manufacturing. RetroGameBoyz does not offer support for these processes.

What you are buying here:

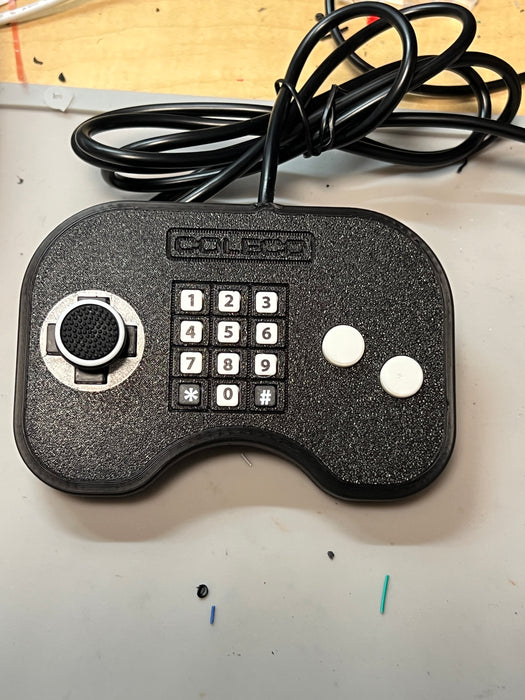

A completed product(s) with my changes that I made available here.

• New case design
• Graphics and/or themes (more available soon - pics will be updated)

• Soft touch more feedback response, silicone conductive pad controls

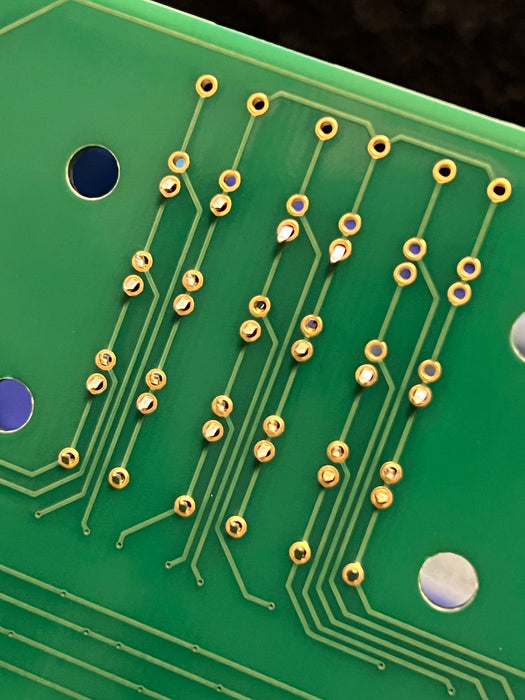

• Pre-assembled PCB using microswitches for the keypad and GOLD contact pads for the directions and fire buttons
