NOTE: Internal wire colors DO NOT MATCH FACTORY Joystick OEM cable colors

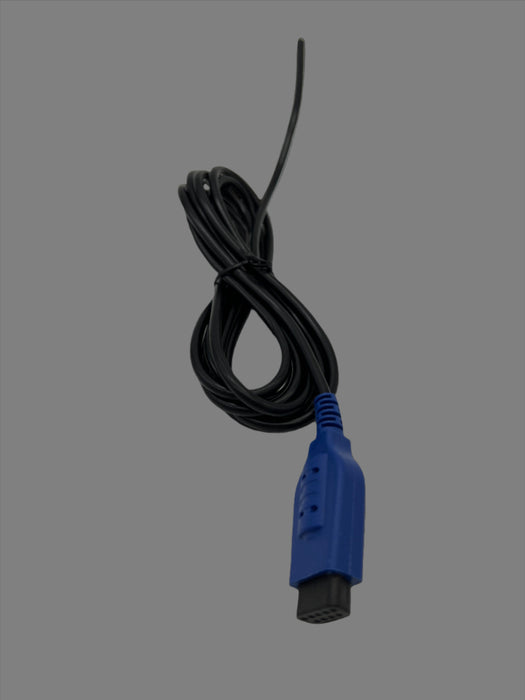

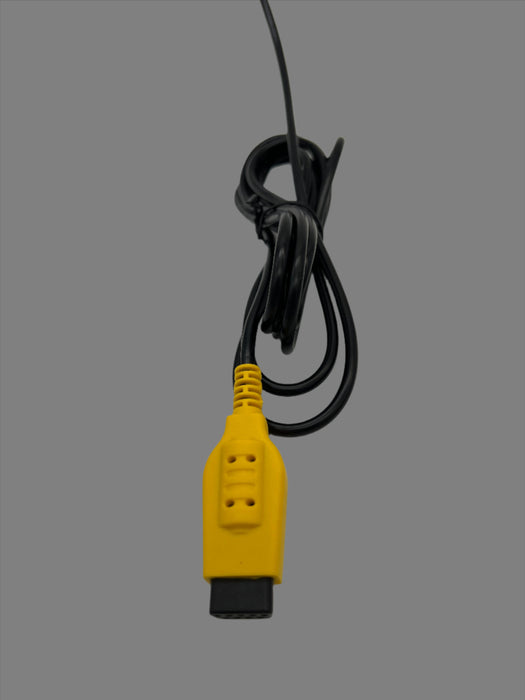

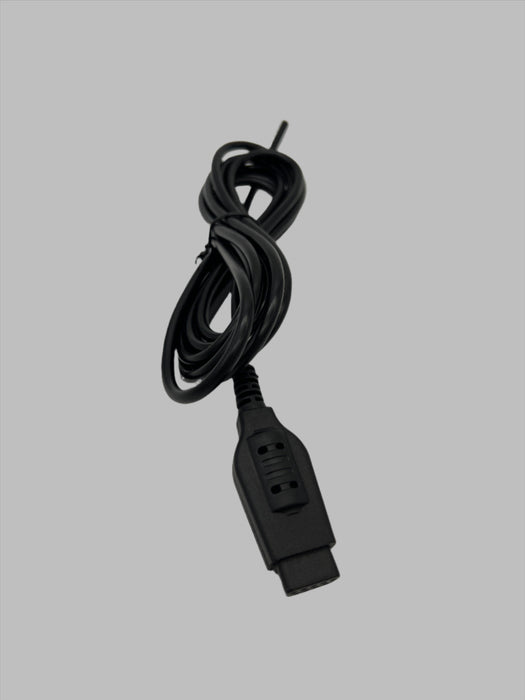

Brand new joystick repair cable for Atari, Sega Master System, Genesis, Commodore 64, Amiga, TI-99, MSX, (Vectrex - requires manually bevel edge) and other DB9 port, 9 wire 9 pin compatible game consoles and computers.
- Length: approx 8 feet 3 inches
- Number of wires: 9
- DB9 female for game console and computer ports
- Colors available Black, Red, Blue, Yellow
Note: You should always use a voltmeter to test the continuity of the pins of the existing wires in the device / cable to match with the wires on the repair cable.
See pic for wire / pin pairing - (voltmeter not included - used to show how to test continuity) (console not included - used to show how it plugs in)
Internal Wire Color and Pin Mapping:
Pin 1 - RED
Pin 2 - BLACK
Pin 3 - BROWN
Pin 4 - GRAY
Pin 5 - ORANGE
Pin 6 - Green
Pin 7 - White
Pin 8 - Blue
Pin 9 - Yellow
